Card/Wristband/Collector Pillar/QR Code Pillar DSSP6001ABCD
- DSSP6001ABCD is an access control machine to swallow card/wristband as a stand-alone unit or integrates with turnstiles to use together.
- The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable, and on top is with black rubber covering.
- It’s with LED indicator on top (red × means no entry; green → means entry).
- Card container of the card box is more than 500 items.
- The system always integrates with turnstiles, parking system or other gates to use together.
- When the machine recognizes the corresponding access control, the connective gates will open automatically.
Features of Card/Wristband/Collector Pillar/QR Code Pillar
- Strong reliability, fast respond and powerful expanded long-using performance
- Lock Structure: up: can open the movement; side: can open collector box
- Stand-alone unit or integrate with turnstile gates.
- The whole system runs smoothly, low noise, no mechanical impact
- The device is with great flexibility for variant kind of cards, like ID, IC card
- LED indicator display passing status.
- Easy to install and maintain
- 3-year warranty support

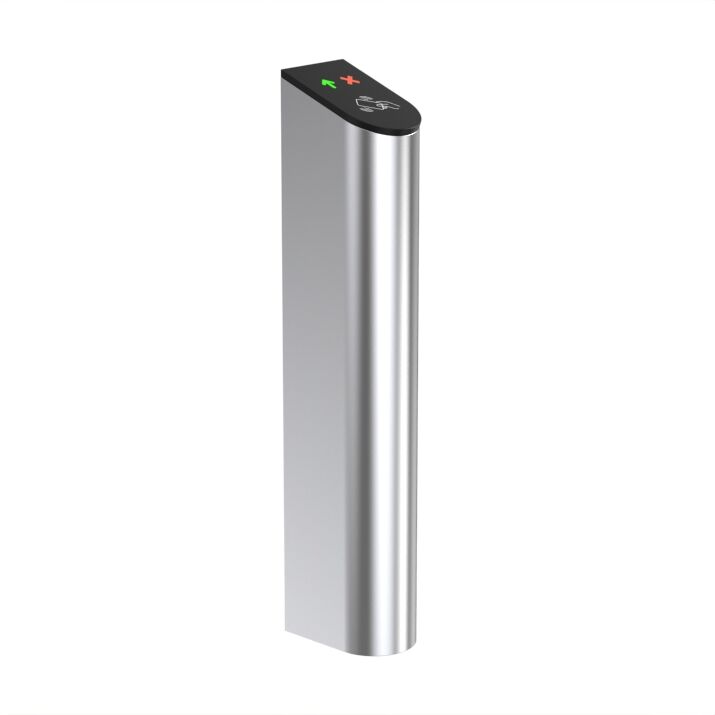

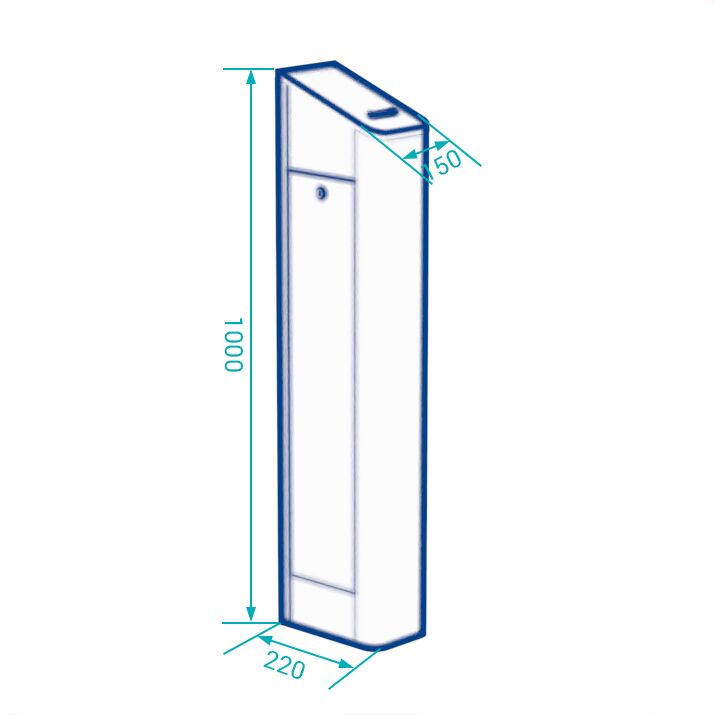

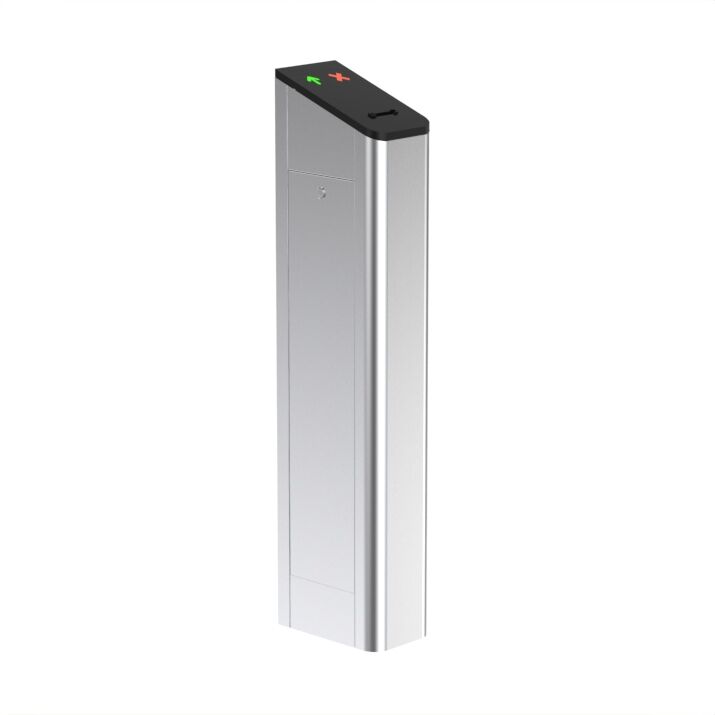

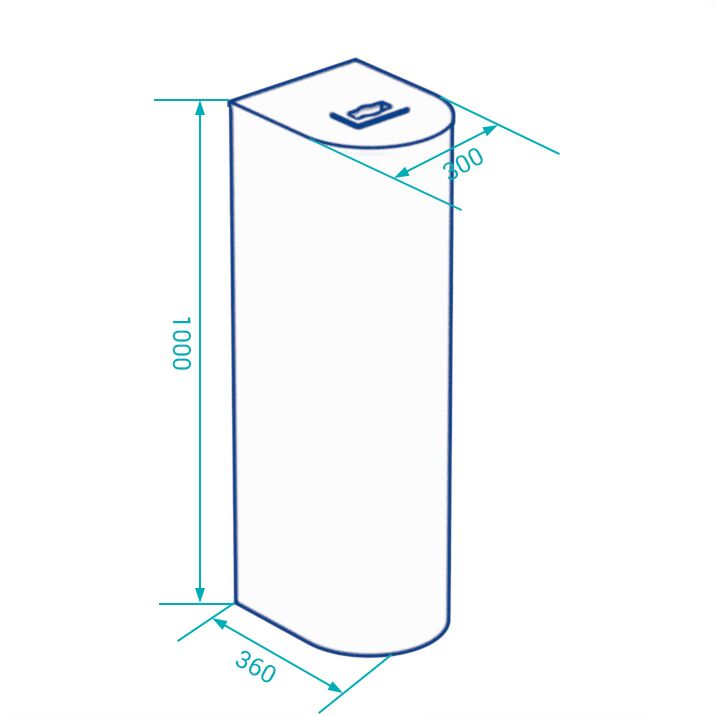

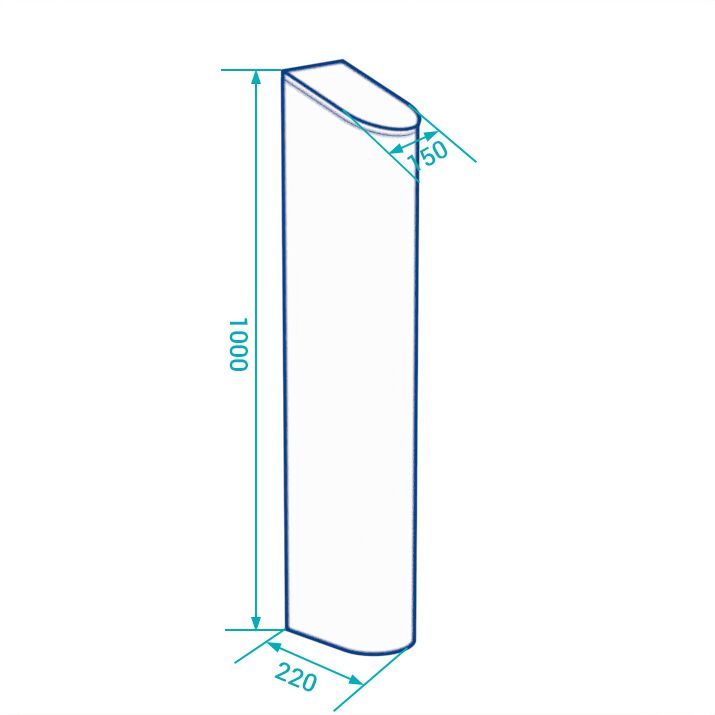

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
Full 304 stainless steel

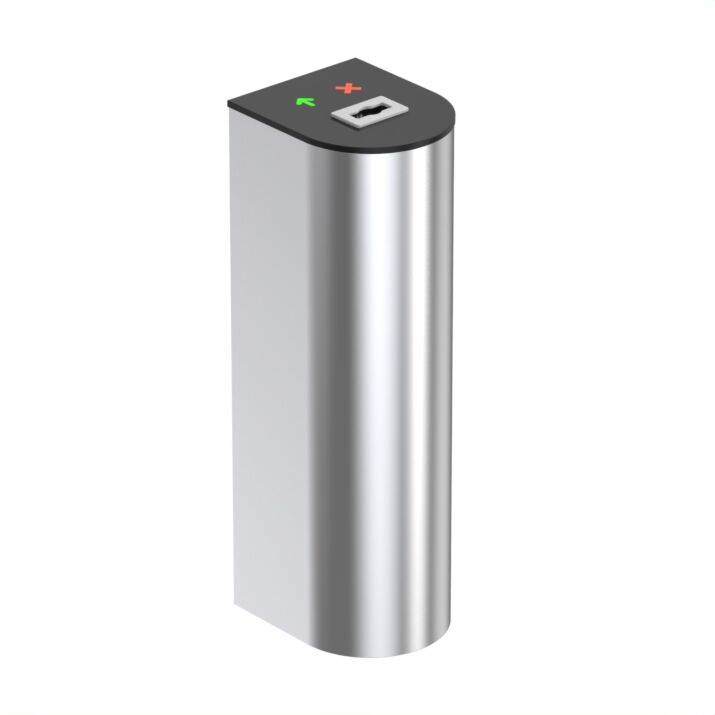

1 de 3LED indicator
2 de 3Swallowing card slot
3 de 3
Product Parameters
| Model No. | DSSP6001ABCD |
|---|---|
| Brand | Daosafe |
| Framework Material | 304 Full Stainless Steel + Black Rubber |
| Dimension | DSSP6001A: 240*150*1000 (mm) DSSP6001B: 360*300*1000 (mm) DSSP6001C: 220*150*1000 (mm) DSSP6001D: 220*150*1000 (mm) |
| Weight | DSSP6001A: 20kg/pcs DSSP6001B: 25kg/pcs DSSP6001C: 20kg/pcs DSSP6001D: 20kg/pcs |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -15 °C - 60 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| IP Level | IP54 |
| Working Environment | Indoor/Outdoor (with shelter) |
| LED Indicator | Yes |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
Clients Gallery
Click on images to enlarge

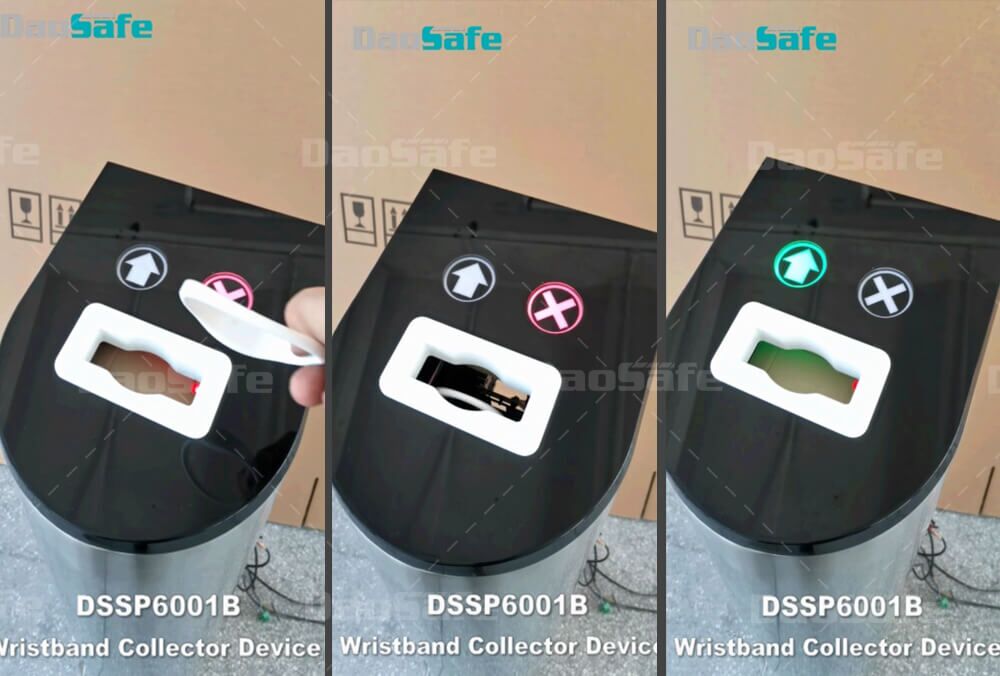

Wristband Collector in Sample Room 1

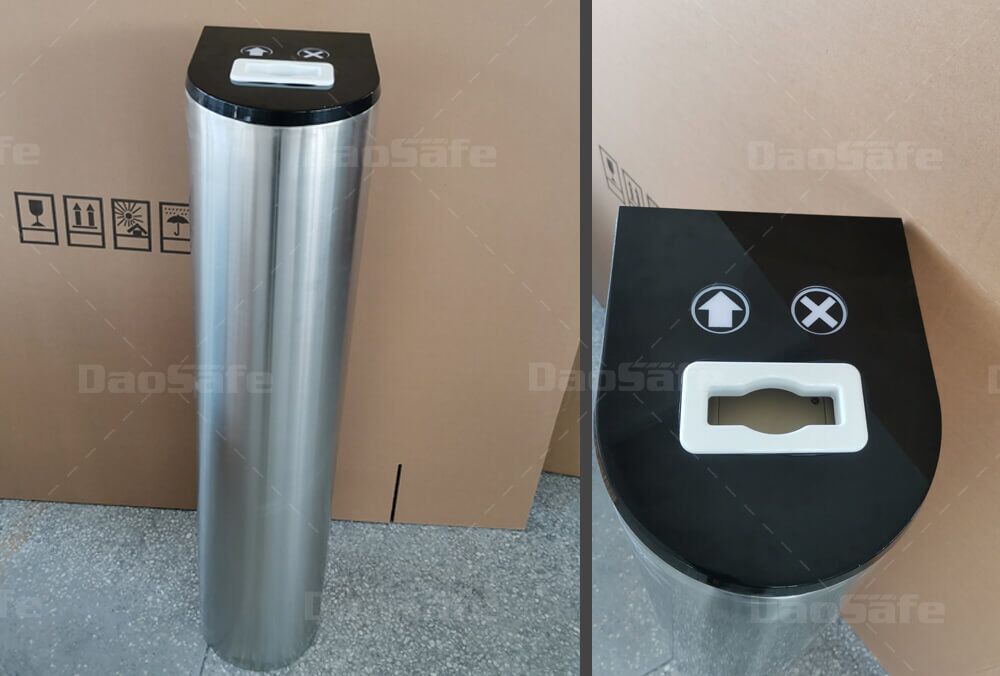

Wristband Collector in Sample Room 2

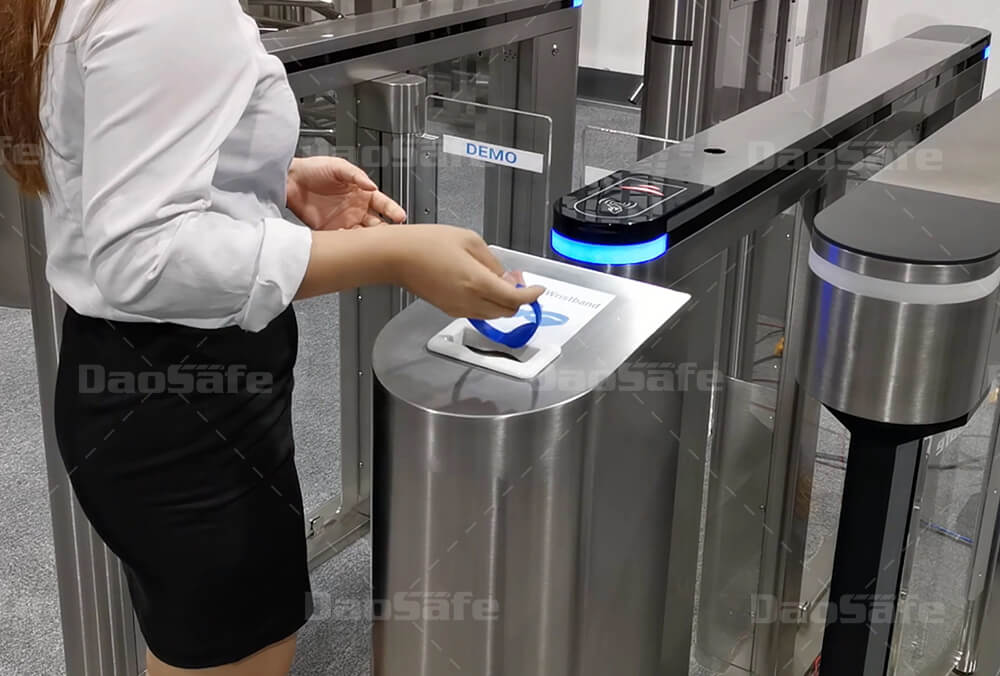

Wristband Collector in Sample Room 3

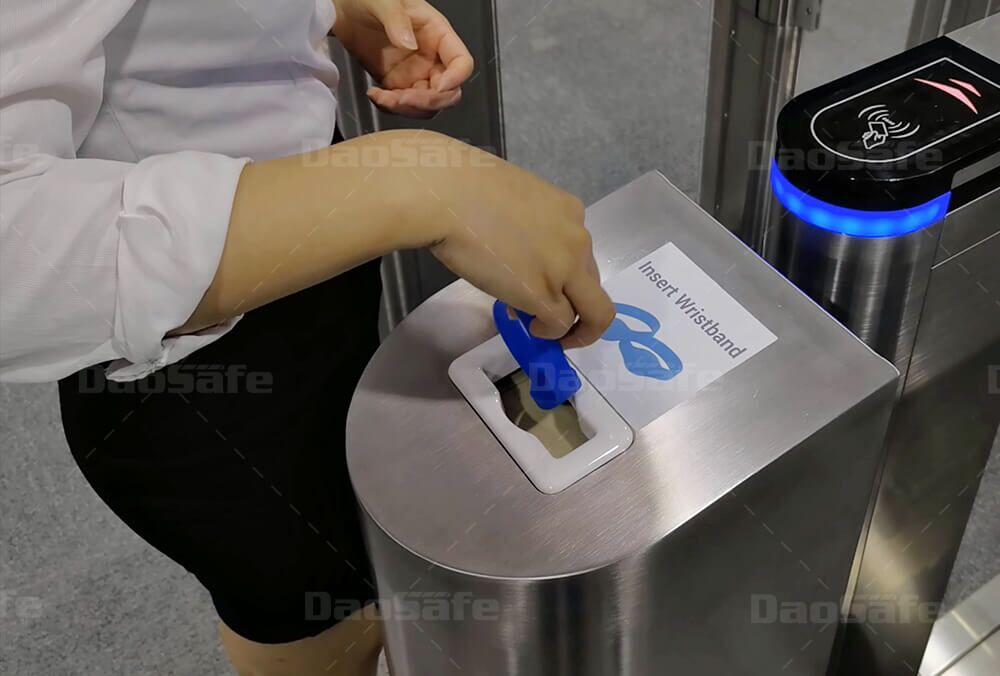

Wristband Collector in Sample Room 4
Documents Download
Datasheet
DSSP6001ABCD Card and Wristband Collector Pillar
File size : 0.83 MB
