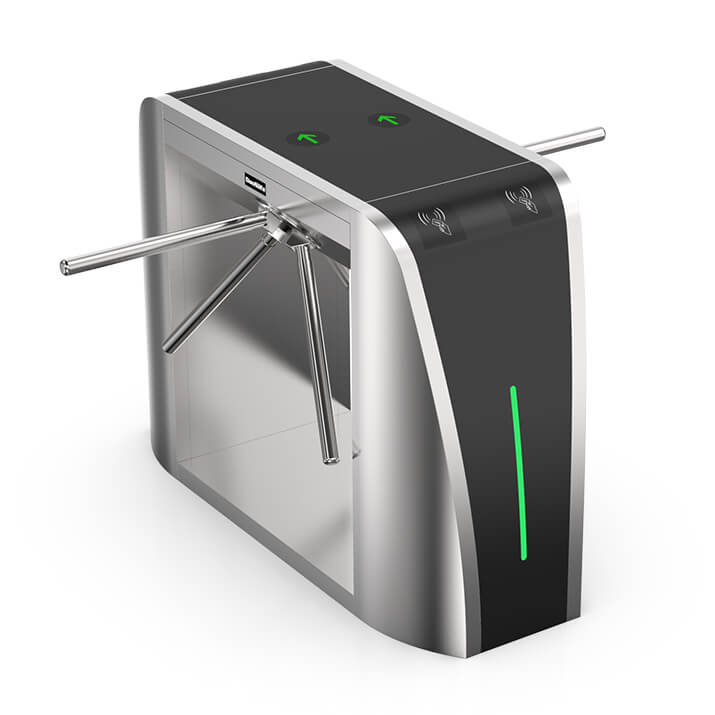

Tripod Turnstile DS1000S

DS1000S is a tripod turnstile with twin rotate arms, one cabinet with two 550mm passageways to improve traffic efficiency.
The biggest feature of this product is its wide body of 520mm, which can integrate any size of third-party door equipment. For example, ESD, LCD, and other devices. And because of its width, it is heavy and sturdy, making the product very secure.
The model is made of brushed stainless steel and also with black stoving varnish, which makes it looks more unique and artistic than other models.
For the body, it’s slim and arc shape, which make it unique and can better protect people from crush injury.
Front body is with bright, long and slim LED indication bar to make it more dazzling and attractive.

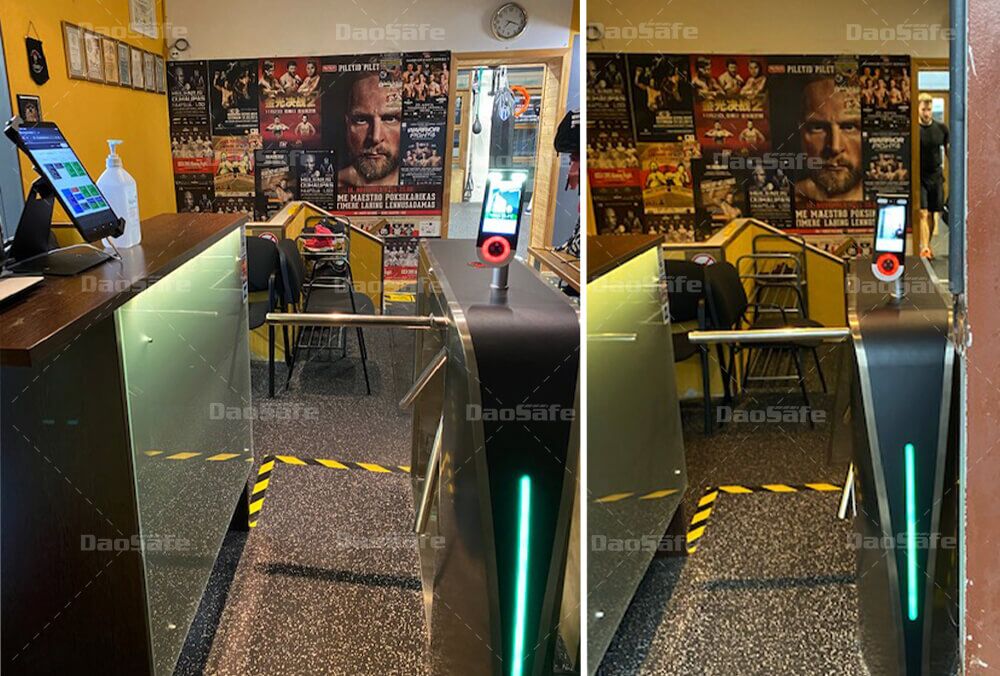

With all-weather and environment capability, it can be applied both indoor and outdoor sites such as park, gym and office.

Features of Daosafe Tripod Turnstile

Long-life performance, high operation dependability and fast response
The whole system runs smoothly, low noise, no mechanical impact
Single directional or Bi-directional is selectable
Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry
Anti-tailing function: only one person passes at one time
When power is off, arms will open automatically, which is complying with fire safety requirements
LED indicator (red × means no entry; green → means entry)
Easy to install and maintain
3-year warranty support

All the details and dimensions can be customized according to your project site

Model No.	DS1000S
Brand	Daosafe
Framework Material	304 Full Stainless Steel

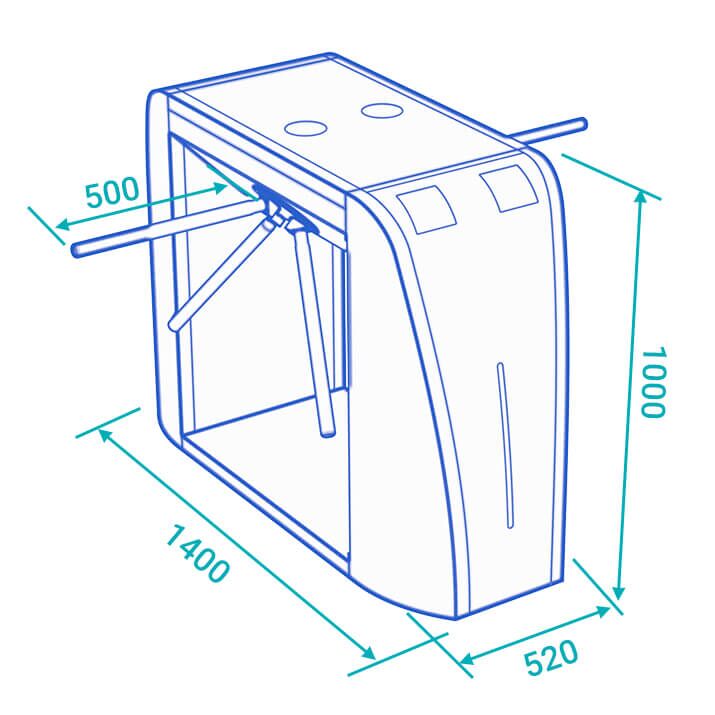

Dimension	1400 * 520 * 1000mm
Weight	110kg/pcs
Passage Width	550mm (Arm length: 500mm)
Passing Direction	Single directional / Bi-directional
MCBF	10 million
Power Supply	AC220V/110V, 50/60Hz
Operation Voltage	24V DC
Power Consumption	40W
Operation Temperature	-15 °C - 60 °C
Operation Humidity	0 ~ 95% (No freeze)
Working Environment	Indoor / Outdoor
Flow Rate	35 people per minute
LED Indicator	Yes
Emergency	Automatic arm open when power off
Communication	Dry contact, Relay signal, RS485
